% polyphony -vm -vd fact.py

sudo apt install iverilog

sudo apt install gtkwave

iverilog -o sim -s test test.v polyphony_out.v

./sim

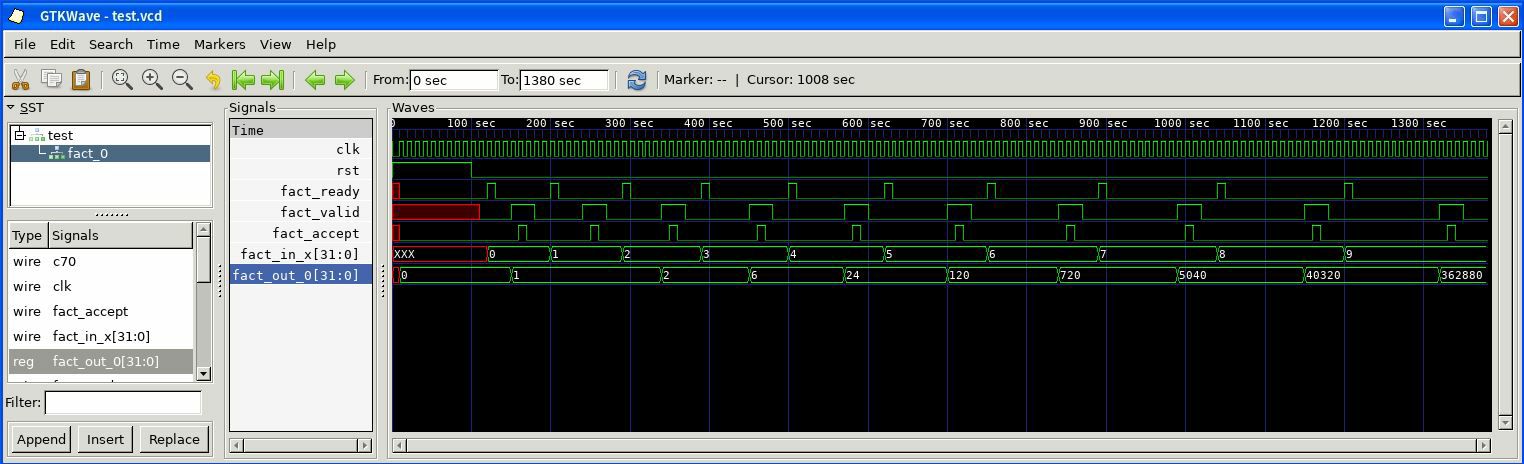

gtkwave test.vcd  &

でGUIが立ち上がるので、適当に操作して波形表示

from polyphony import testbench

def fact(x):

    y = 1

    for i in range(1, x+1):

        y = y * i

    return y

@testbench

def test():

    for i in range(0,10):

        fact(i)

test()

module fact

  (

    input wire clk,

    input wire rst,

    input wire fact_ready,

    input wire fact_accept,

    output reg fact_valid,

    input wire signed [31:0] fact_in_x,

    output reg signed [31:0] fact_out_0

  );

  //localparams

  localparam fact_b1_INIT = 0;

  localparam fact_b1_S0 = 1;

  localparam fact_b1_S1 = 2;

  localparam fact_forelse5_FINISH = 3;

  localparam fact_L1_fortest2_S0 = 4;

  localparam fact_L1_forbody3_S0 = 5;

  localparam fact_L1_forbody3_S1 = 6;



  //signals:

  wire c71;

  reg        [2:0] fact_state;

  wire signed [31:0] i3;

  wire signed [31:0] t65;

  wire signed [31:0] y3;

  reg signed [31:0] i2;

  reg signed [31:0] x;

  reg signed [31:0] y2;

  //combinations:

  assign c71 = (i2 < t65);

  assign i3 = (i2 + 1);

  assign t65 = (x + 1);

  assign y3 = (y2 * i2);



  always @(posedge clk) begin

    if (rst) begin

      fact_out_0 <= 0;

      i2 <= 0;

      x <= 0;

      y2 <= 0;

      fact_state <= fact_b1_INIT;

    end else begin //if (rst)

      case(fact_state)

      fact_b1_INIT: begin

        fact_valid <= 0;

        if (fact_ready == 1) begin

          x <= fact_in_x;

          i2 <= 1;

          y2 <= 1;

          fact_state <= fact_b1_S1;

        end

      end

      fact_b1_S1: begin

        /* t65 <= (x + 1); */

        fact_state <= fact_L1_fortest2_S0;

      end

      fact_L1_fortest2_S0: begin

        /* c71 <= (i2 < t65); */

        if (c71) begin

          /* y3 <= (y2 * i2); */

          /* i3 <= (i2 + 1); */

          i2 <= i3;

          y2 <= y3;

          fact_state <= fact_L1_fortest2_S0;

        end else begin

          fact_valid <= 1;

          if (fact_accept == 1) begin

            fact_state <= fact_b1_INIT;

          end

          fact_out_0 <= y2;

        end

      end

      endcase

    end

  end



endmodule

module test

  (



  );

  //localparams

  localparam CLK_PERIOD = 10;

  localparam CLK_HALF_PERIOD = 5;

  localparam INITIAL_RESET_SPAN = 100;

  localparam test_b1_INIT = 0;

  localparam test_b1_S1 = 1;

  localparam test_forelse5_S0 = 2;

  localparam test_forelse5_FINISH = 3;

  localparam test_L1_fortest2_S0 = 4;

  localparam test_L1_forbody3_S0 = 5;

  localparam test_L1_forbody3_S1 = 6;

  localparam test_L1_forbody3_S2 = 7;

  localparam test_L1_forbody3_S3 = 8;

  localparam test_L1_forbody3_S4 = 9;

  localparam test_L1_forbody3_S5 = 10;

  localparam test_L1_forbody3_S6 = 11;

  localparam test_L1_forbody3_S7 = 12;



  //signals:

  wire c69;

  wire fact_0_valid;

  reg clk;

  reg fact_0_accept;

  reg fact_0_ready;

  reg rst;

  reg        [3:0] test_state;

  reg signed [31:0] i2;

  reg signed [31:0] i3;

  //signals: in_x

  reg        [31:0] fact_0_in_x;

  //signals: out_0

  wire        [31:0] fact_0_out_0;

  //combinations:

  assign c69 = (i2 < 10);

  //sub modules

  //fact_0 instance

  fact fact_0(

    .clk(clk),

    .rst(rst),

    .fact_ready(fact_0_ready),

    .fact_accept(fact_0_accept),

    .fact_valid(fact_0_valid),

    .fact_in_x(fact_0_in_x),

    .fact_out_0(fact_0_out_0)

  );





  initial begin

    $monitor("%5t:fact_0_in_x=%4d, fact_0_out_0=%4d", $time, fact_0_in_x, fact_0_out_0);

    $dumpfile("test.vcd");

    $dumpvars(0, test);

  end

  initial begin

    clk = 0;

    #CLK_HALF_PERIOD

    forever #CLK_HALF_PERIOD clk = ~clk;

  end

  initial begin

    rst <= 1;

    #INITIAL_RESET_SPAN

    rst <= 0;

  end



  always @(posedge clk) begin

    if (rst) begin

      fact_0_accept <= 0;

      fact_0_ready <= 0;

      i2 <= 0;

      i3 <= 0;

      test_state <= test_b1_INIT;

    end else begin //if (rst)

      case(test_state)

      test_b1_INIT: begin

        i2 <= 0;

        test_state <= test_L1_fortest2_S0;

      end

      test_forelse5_FINISH: begin

        $display("%5t:finish", $time);

        $finish();

      end

      test_L1_fortest2_S0: begin

        /* c69 <= (i2 < 10); */

        if (c69) begin

          fact_0_ready <= 1;

          fact_0_in_x <= i2;

          test_state <= test_L1_forbody3_S1;

        end else begin

          test_state <= test_forelse5_FINISH;

        end

      end

      test_L1_forbody3_S1: begin

        fact_0_ready <= 0;

        test_state <= test_L1_forbody3_S2;

      end

      test_L1_forbody3_S2: begin

        if (fact_0_valid == 1) begin

          fact_0_accept <= 1;

          test_state <= test_L1_forbody3_S4;

        end

      end

      test_L1_forbody3_S4: begin

        fact_0_accept <= 0;

        test_state <= test_L1_forbody3_S5;

      end

      test_L1_forbody3_S5: begin

        i3 <= (i2 + 1);

        test_state <= test_L1_forbody3_S6;

      end

      test_L1_forbody3_S6: begin

        i2 <= i3;

        test_state <= test_L1_fortest2_S0;

      end

      endcase

    end

  end



endmodule
